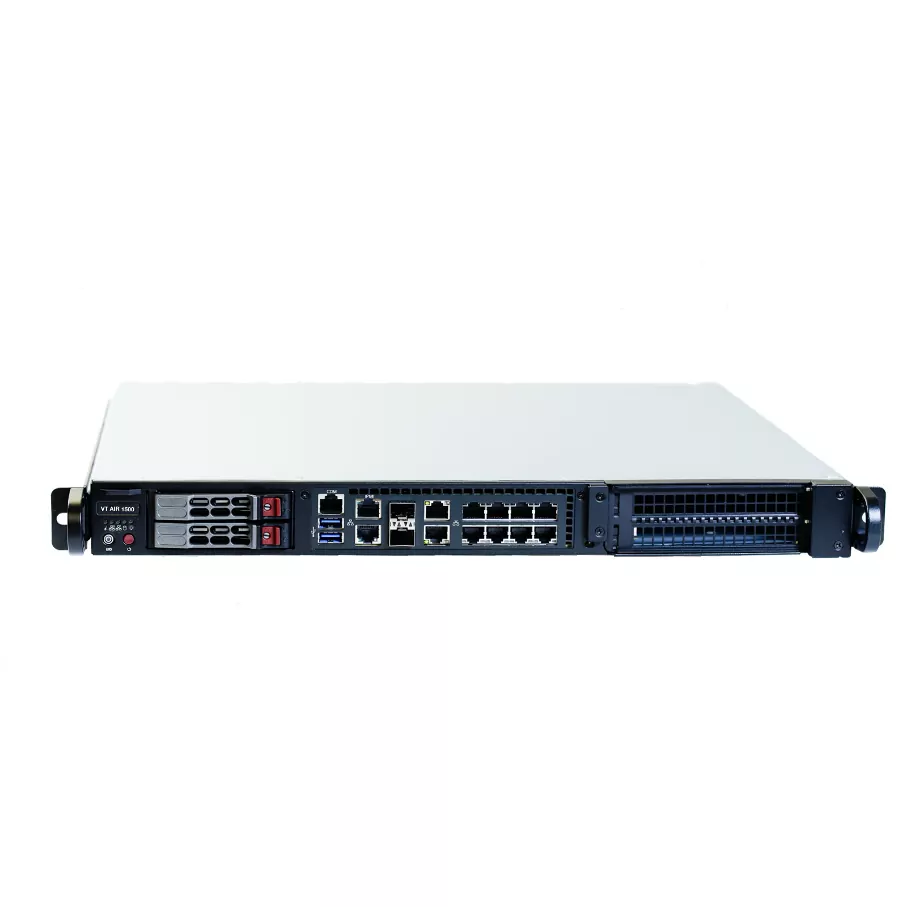

3.7. VT AIR 1500

3.7.1. Overview

Summary of Features

CPU	Intel Xeon D 2146NT, 2.3 GHz, Intel Quick Assist
CPU Cores	8 Cores
NIC	2x 10GbE Intel SFP+ Ports 2x 10GbE Intel RJ45 Ports 9x 1Gbps Intel RJ45
Remote Management	1x 1Gbps RJ45 IPMI
SSD	2x 256 GB Datacenter SSD SATA Hot Swap (RAID1)
RAM	32 GB DDR4 ECC Reg
Expansion	2x PCI-E 3.0 16x slots
Console-Port	VGA
USB Ports	2x USB 3.0 ports
LED	Power/Status/SATA Activity
Size	Standard 19” 1U rack mount
Cooling	Active control chassis fans
Power	100-240V, Internal Power Supply German Powercord IEC320-C13
Enviroment	0°C to 45°C Operating Temp 8% to 90% Operating Relative Humidity (non-condensing)
Certificates	Electromagnetic Emissions: FCC Class B, EN 55032 Class B, EN 61000-3-2/3-3, CISPR 32 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Other: VCCI-CISPR 32 and AS/NZS CISPR 32 Environmental: Directive 2011/65/EU, Deligated Directive (EU) 2015/863, and Directive 2012/19/EU Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)
Software	VT AIR Linux

3.7.2. External Connectors

Certified Cables

The following is a list of industry-standard cables, sorted by type, with the necessary compliance requirements that have been proven to work well with the VT AIR product family.

These examples are the cables which Voleatech uses for testing and should provide enough information to source products from your preferred cable vendor.

• Ethernet cable: Monoprice 24AWG Cat6A 500MHz STP (max. 30m)

• USB Cable: SuperSpeed USB 3.0 Type A Male to Male Cable

USB Connector

The front USB connector supports USB 3.0, connector type A. It can deliver up to 500 mA of power.

3.7.3. Packaging

The following items will be in the packaging of your VT AIR 1500. Please make sure to check all items upon arrival of the device:

• VT AIR 1500 Device in the enclosure

• Power cable

• Rack mount

3.7.4. Ports

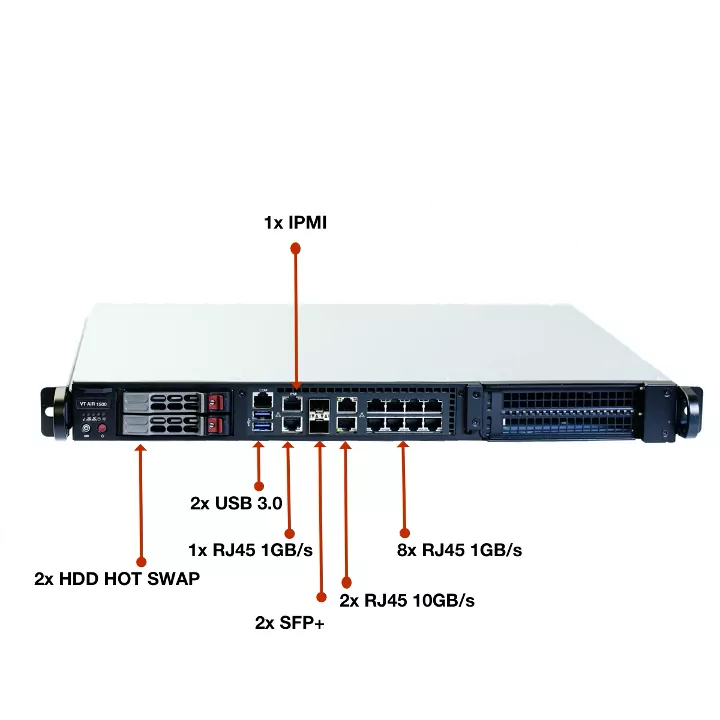

Front Connectors

Network Ports
IPMI	eno13	eno11	eno3	eno5	eno7	eno9
eno1 (LAN)	eno12	eno10	eno2 (WAN)	eno4	eno6	eno8

Label	Software Name	Features
WAN	eno2	RJ45 1000/100/10 Mbit/s
LAN	eno1	RJ45 1000/100/10 Mbit/s
	eno3	RJ45 1000/100/10 Mbit/s
	eno4	RJ45 1000/100/10 Mbit/s
	eno5	RJ45 1000/100/10 Mbit/s
	eno6	RJ45 1000/100/10 Mbit/s
	eno7	RJ45 1000/100/10 Mbit/s
	eno8	RJ45 1000/100/10 Mbit/s
	eno9	RJ45 1000/100/10 Mbit/s
	eno10	RJ45 10000/1000/100/10 Mbit/s
	eno11	RJ45 10000/1000/100/10 Mbit/s
	eno12	SFP+ 10000/1000 Mbit/s
	eno13	SFP+ 10000/1000 Mbit/s

The RJ45 ports support Autonegotiation and Full Duplex or Half Duplex on all speeds.

The SFP Port supports the following Modules:

• 10Gb SR/LR

• 1Gb NOT SUPPORTED

SFP modules must be Intel coded. The Speed of the 10Gb modules can be set to 1Gb in VT AIR to connect to a 1Gb SFP.

Extension Card

Network Ports Extension Cards
Slot 1	enp23s0f0	enp23s0f1	enp23s0f2	enp23s0f3
Slot 2	enp100s0f0	enp100s0f1	enp100s0f2	enp100s0f3

3.7.5. IPMI

The model comes equipped with an IPMI controller. The IPMI controller has a separate Network Interface but can also get its IP from a shared Network Port.

Warning

If you see a dhcp address being taken on the LAN port by default than is is the IPMI IP and not the Webgui

Note

Login Data are User: ADMIN (capital letters) Password: Provided on a sticker on the bottom or side of the device

3.7.6. Power

The VT AIR 1500 has 1 power cable connector.

3.7.7. VGA Console

The VT AIR 1500 has a VGA port where you can connect a VGA monitor to see the console.

3.7.7.1. First Connection to VT AIR Appliance

All VT AIR Appliances have a default LAN IP Address of 192.168.1.1 and the DHCP Server is active on LAN. Please make sure to locate the LAN interface of your appliance in the manual.

Connect your computer to the LAN Interface and receive an IP Address from the DHCP Server. It will be in the 192.168.1.X range.

After receiving the IP Address open a supported browser and navigate to https://192.168.1.1 A certificate warning will appear, since the VT AIR is using a self signed certificate. Please accept the certificate and continue to the page.

You will now be presented with the VT AIR login screen and you can use the default User and Password to login.

Note

User: admin Password: vtair

Please change the password after the first login.

3.7.8. VT AIR Reinstallation

Your VT AIR device comes pre-installed with its operating system. Should you ever need to reinstall the VT AIR operating system follow this guide.

3.7.8.1. Download the Installer File

You can download the installer file from your Portal (see Downloads for details). Make sure to download the file for your specific model/architecture.

3.7.8.2. USB Flash Drive Preparation

Once you downloaded the file make sure your USB flash drive is at least 2 GB in size. Also backup all your files from the USB flash drive since it will be formatted in the process and all files on it will be deleted.

3.7.8.3. Download the Software

Download and install the software balenaEtcher from www.balena.io/etcher. It is available for Windows, macOS and Linux. Select the software for your specific operating system.

3.7.8.4. Use the Software

Insert your USB flash drive into the computer. Start the balenaEtcher software.

Press Flash from file

Select the downloaded installer file with the ending .iso

Select your USB flash drive as target

Press Flash! to complete and wait until the process is finished. Close the software and remove the USB flash drive from your computer.

3.7.8.5. Install the Software

Insert the USB flash drive with the new VT AIR operating system in your VT AIR’s USB port.

3.7.8.6. VGA Monitor Installation

Connect a monitor and keyboard to your VT AIR device. Reboot the device and press F8 during the boot process to get into the boot menu. Select the USB key and boot from it.

In the installer choose Install.

The installer runs without any user inputs.

3.7.9. LEDs

The VT AIR 1500 has multiple LEDs. They are indicating for example power on, connection and port activity. Ethernet port related LEDs are embedded in the RJ45 connectors, while the power indicator LED is located next the serial port.

The RJ45 NIC LEDs are configured the following way:

LED Activity	Explanation
Off	No connection
Green Light Only	100Mbit/s Speed
Green and Yellow Light	1000Mbit/s Speed

3.7.10. Operational Data

Operational Voltage

Item	Voltage	Current	Ambient Temperature
AC Voltage	100 - 240 V	0.5 - 2.5 A	Max. 45°C

Enviromental Data

The environmental temperature data are based upon the component with the lowest available temperature. Please make sure to check which addons you ordered and make sure not to exceed the allowed ambient temperature.

Warning

Failure to comply with the allowed ambient temperature may void the warranty of your device.

Ambient Temperature	Minimum	Maximum
Base Device	0°C	45°C
Humidity (non-condensing)	8 %	90 %

3.7.11. Warranty Terms and Conditions

Voleatech GmbH guarantees its hardware products against defects in workmanship and material for a period of one (1) year from the date of shipment. Under warranty, the customer’s sole remedy and Voleatech’s sole liability shall be, at Voleatech’s sole discretion, to either repair or replace the defective hardware product at no charge.
This warranty is void if the hardware product has been altered or damaged by an accident, misuse or abuse or is not operated according to this manual.
For additional information on warranty and related topics like RMA, please visit voleatech.de.
