20.19. Hard Drives

You can find the Hard Drives Diagnostics at Diagnostics → Hard Drives → Hard Drives (this is not available on VT AIR 100/300 devices due to the eMMC drive type).

HDD Diagnostics

Here you can see S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology) information of your hard drives.

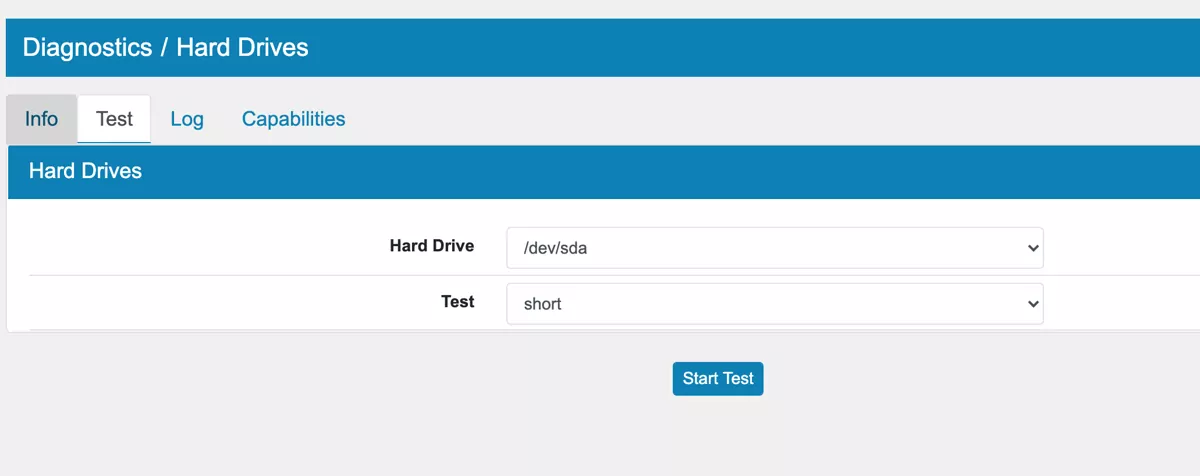

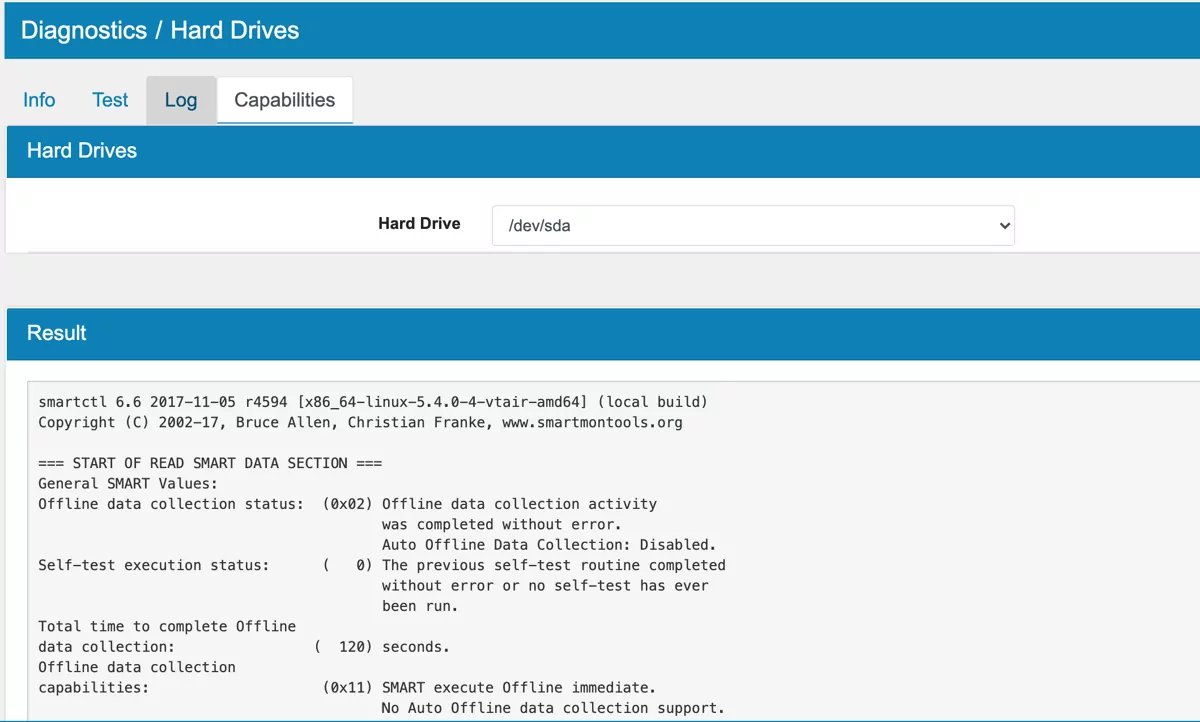

It’s divided into Info, Test, Log and Capabilities. At Test you can start a short or long test of a specific hard drive and the result can be seen at Log after a few minutes.

HDD Diagnostics

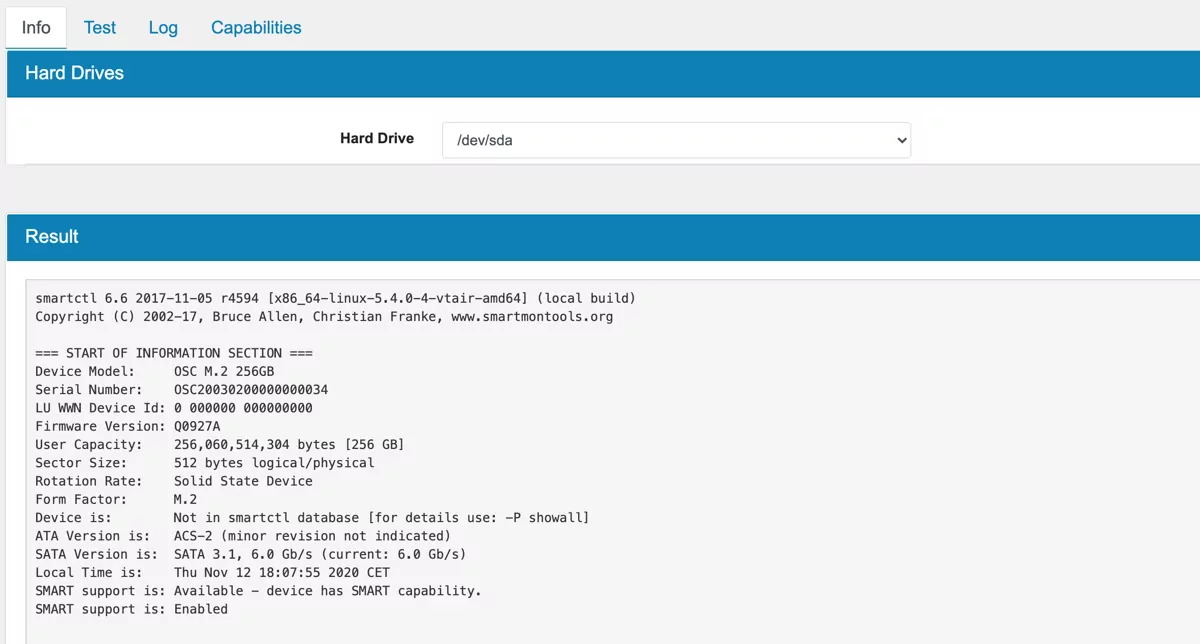

The Info could look like this:

=== START OF INFORMATION SECTION ===
Device Model:     TS128GMTS400S
Serial Number:    7612325CE35121310830
Firmware Version: Q0926B
User Capacity:    128,035,676,160 bytes [128 GB]
Sector Size:      512 bytes logical/physical
Rotation Rate:    Solid State Device
Form Factor:      M.2
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Mon May 20 15:06:44 2019 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
HDD Diagnostics

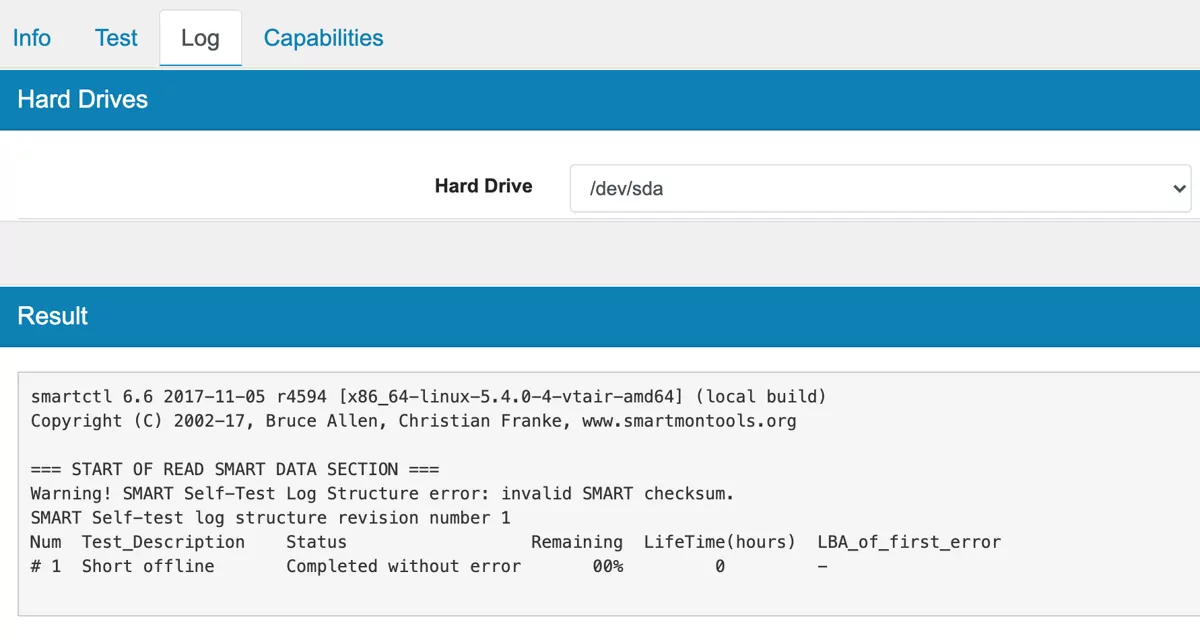

and the Log like this:

=== START OF READ SMART DATA SECTION ===
SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short captive       Completed without error       00%      3327         -
# 2  Short offline       Completed without error       00%      3325         -
# 3  Extended offline    Completed without error       00%      3324         -
# 4  Short offline       Completed without error       00%      3324         -
# 5  Short offline       Completed without error       00%      3251         -
