20.23. Interfaces

You can find the Interfaces Diagnostics at Diagnostics → Interfaces → Interfaces.

20.23.1. Interfaces

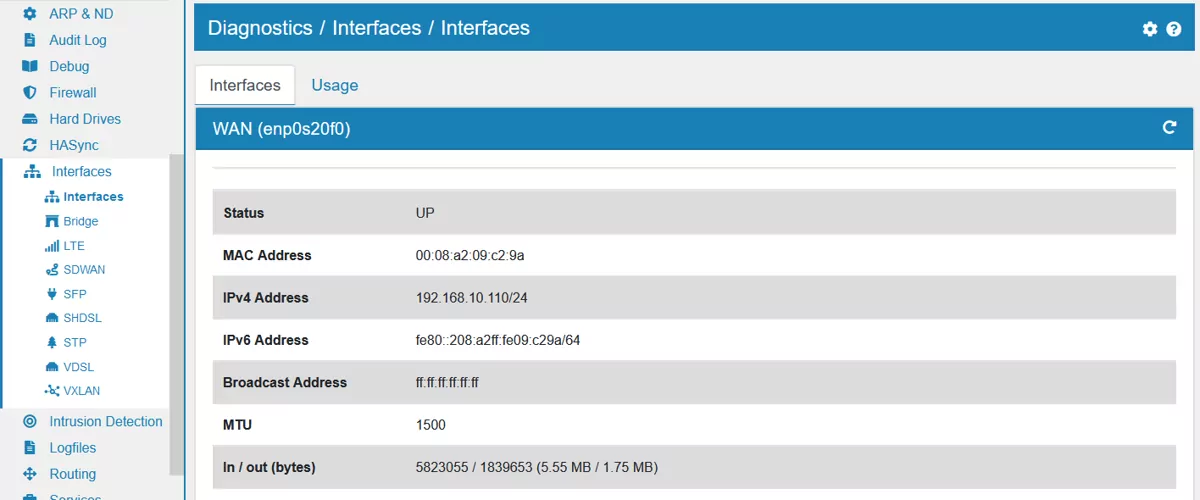

Interfaces Diagnostics

Here you can see each interface with its current status, MAC address, IPv4 address, IPV6 address, broadcast Address, MTU and traffic.

The traffic is divided into In and Out as well as into bytes, packets, errors and drops.

To assign Interfaces please go to Interfaces → Assign and refer to the documentation at Assign Interfaces.

20.23.2. Usage

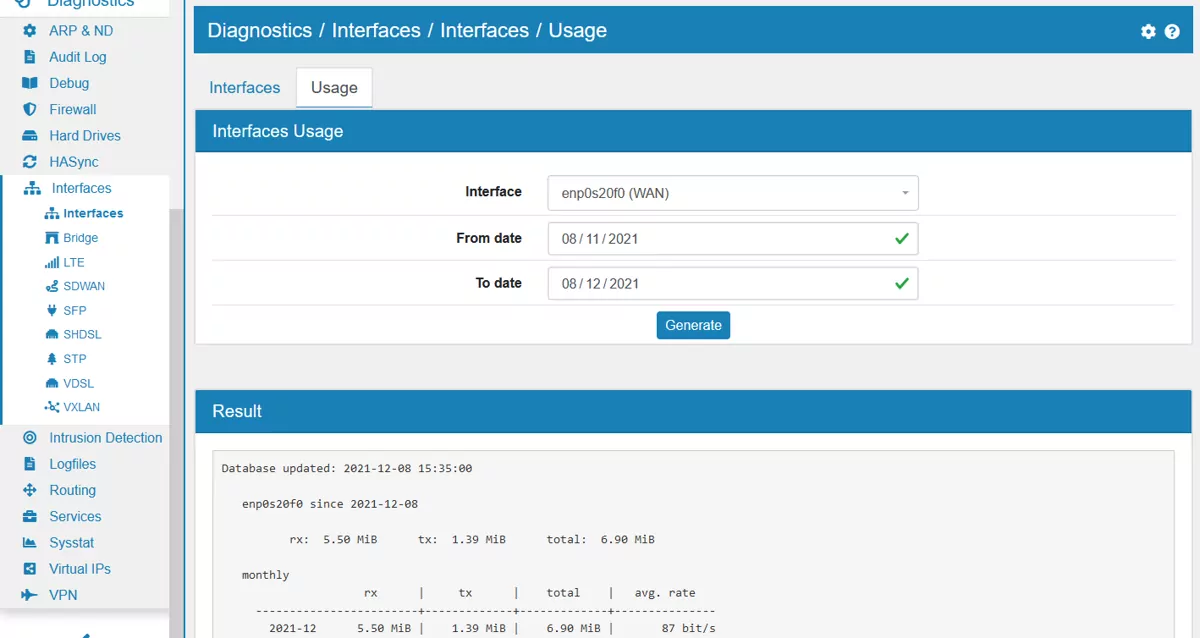

Interfaces Usage Diagnostics

Here you can see the usage of each interface. Select an Interface, From date and To date and click on Generate to see the usage data.

The Usage data could look like this:

Database updated: 2021-12-08 15:35:00

enp0s20f0 since 2021-12-08

        rx:  5.50 MiB      tx:  1.39 MiB      total:  6.90 MiB

monthly
                    rx      |     tx      |    total    |   avg. rate
    ------------------------+-------------+-------------+---------------
    2021-12      5.50 MiB |    1.39 MiB |    6.90 MiB |       87 bit/s
    ------------------------+-------------+-------------+---------------
    estimated     20.43 MiB |    5.11 MiB |   25.54 MiB |

daily
                    rx      |     tx      |    total    |   avg. rate
    ------------------------+-------------+-------------+---------------
        today      5.50 MiB |    1.39 MiB |    6.90 MiB |    1.03 kbit/s
    ------------------------+-------------+-------------+---------------
    estimated      8.48 MiB |    2.14 MiB |   10.62 MiB |
